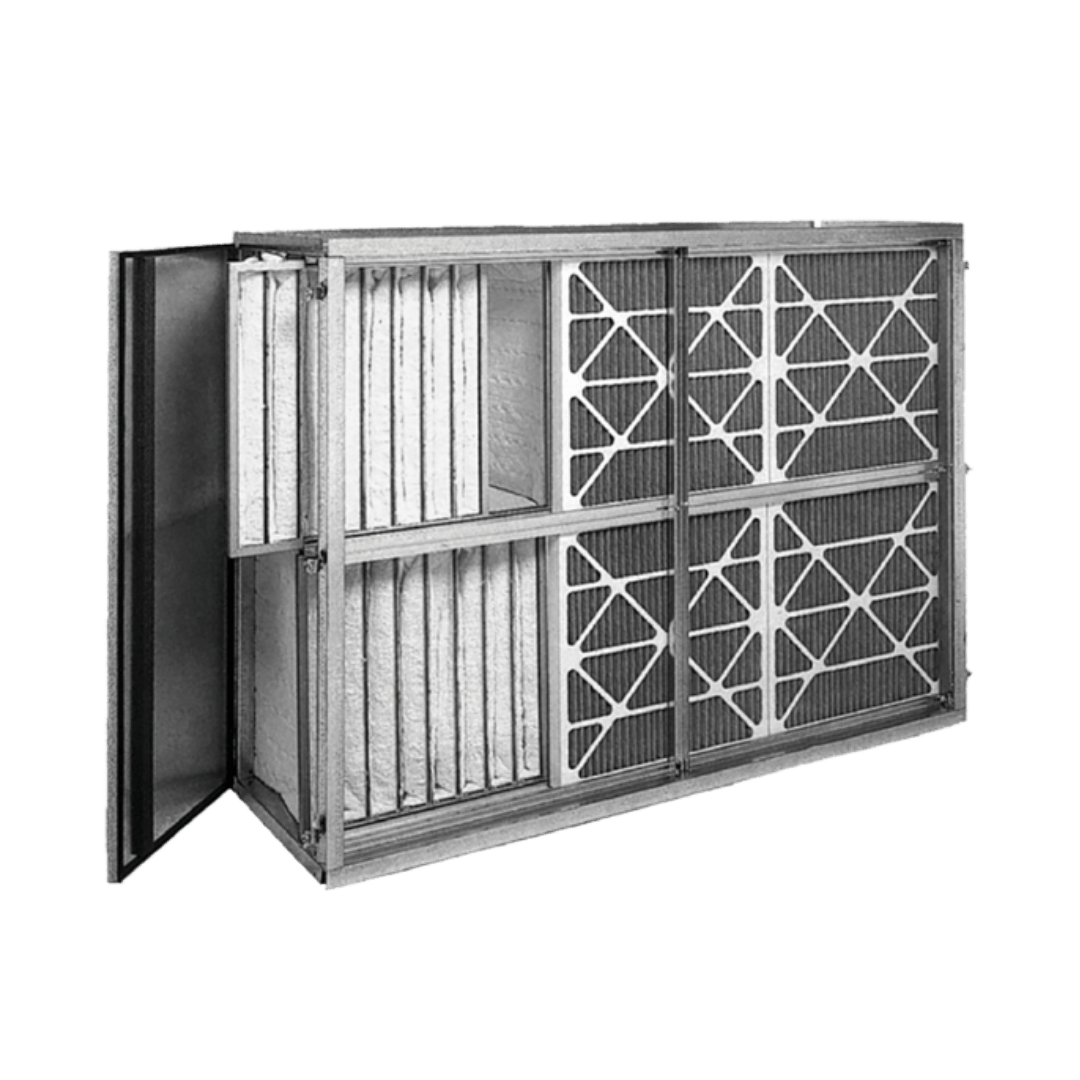

AAF SureSeal™ Side Access Filter Housings

Products
»
Equipment & Housings
»
AAF SureSeal™ Side Access Filter Housings

SureSeal side access filter housings are easy-to-service, two-stage units that accommodate prefilters and single header, high-efficiency secondary filters. No holding frames or fasteners are needed for installation.

Download Product Sheet Contact A BGE Specialist

16-gauge galvanized steel with reinforced corners, fully gasketed doors and tracks, and aluminum filter rails with replaceable seals.

Available up to 8 ft high by 12 ft wide. Standard 22.5″ depth, with optional extensions up to 44″.

Two-stage design fits 2″ prefilters and 6″–36″ secondary filters. No holding frames needed. Quick-access doors and <0.5% leakage at 6.0″ w.g. pressure.

Durable Construction – Made from 16-gauge galvanized steel with reinforced “Z” channel supports.
Two-Stage Filtration – Accommodates both 2″ prefilters and 6″–36″ secondary filters.
Leak-Free Sealing – Fully gasketed doors and tracks ensure minimal air bypass.
Flexible Sizing – Available in a wide range of sizes with optional extensions up to 44″.
Tool-Free Maintenance – Quick-opening access doors for easy filter changes.
Weather-Resistant Design – Rain-shedding top pan reduces the need for additional weatherproofing.
Low Leakage Rate – Less than 0.5% at 6.0″ w.g. internal static pressure.
