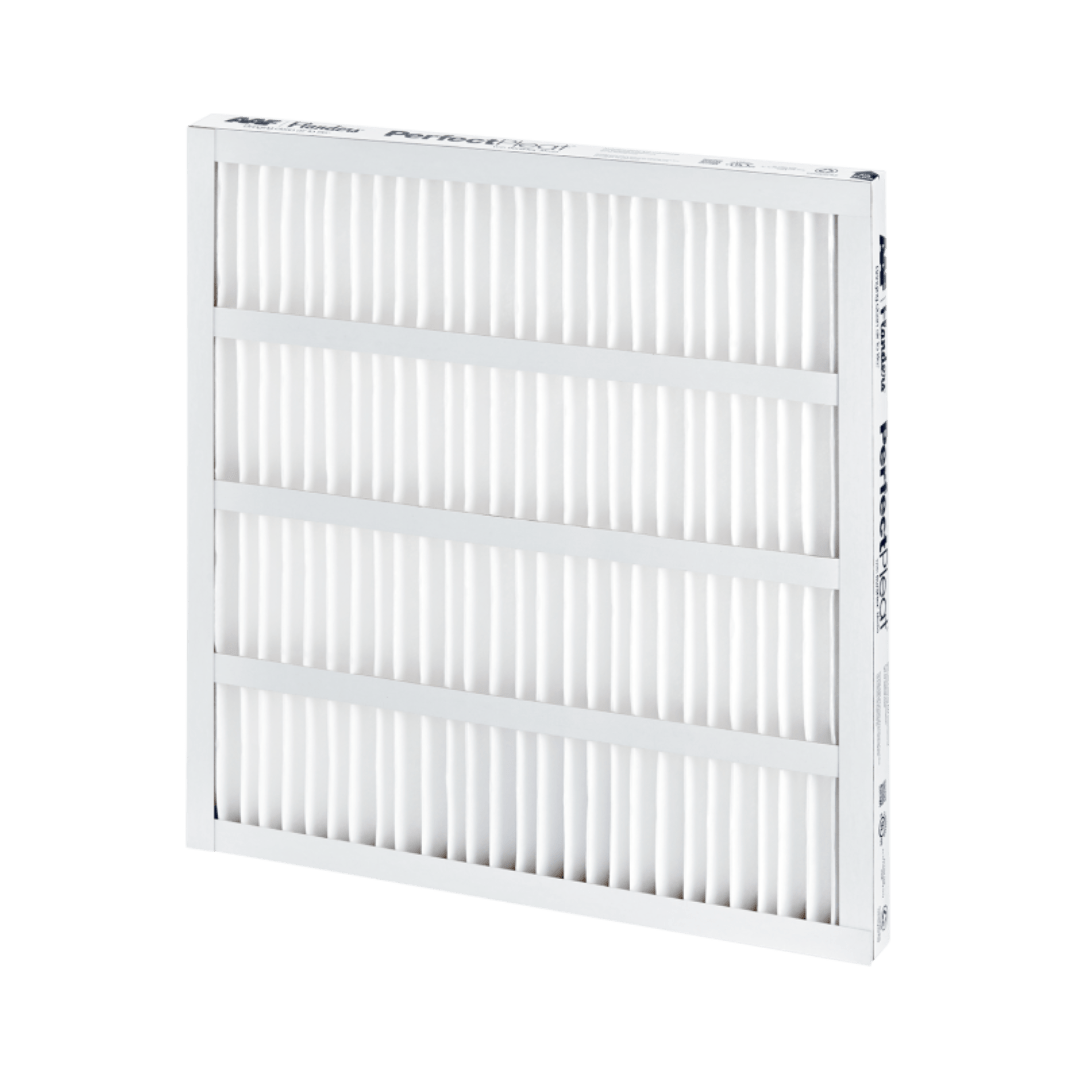

AAF PerfectPleat® SC M8 Filter
AAF’s PerfectPleat SC M8 pleated filters have distinctive self-supporting characteristics that promote airflow and maximize dust-holding capacity. Lower pressure drop and higher dust holding capacity mean reductions in energy consumption and operating costs.
Efficiency
AAF’s PerfectPleat SC M8 is rated as MERV 8.
Dust Holding Capacity
PerfectPleat SC M8 pleated filters have distinctive self-supporting characteristics that promote airflow and maximize dust-holding capacity (DHC). Lower pressure drop and higher DHC means reductions in energy consumption and operating costs.
Depth
Available in 2” and 4” depths
Initial Resistance
The initial resistance of the PerfectPleat is:
0.24 in.w.g. for the 2” at 500 fpm
0.23 in.w.g. for the 4” at 500 fpm
Final Resistance
The recommended final resistance is:
1.0 in.w.g. for both 2” and 4”
Key Features & Benefits
- Low Initial Resistance – Designed to increase efficiency consistently throughout the filter’s lifespan.
- Self-Supporting Media – DuraFlex® media, made from virgin fiber, holds its shape without wire support, eliminating rust formation and ensuring safer handling.
- Mechanical Efficiency – Does not rely on electret charge technology, ensuring consistent filtration performance.
- Consistent Media Quality – Controlled fiber size and blend provide reliable and uniform filtration.
- Environmentally Friendly – Contains no dyes or metal and is fully incinerable for easy disposal.
