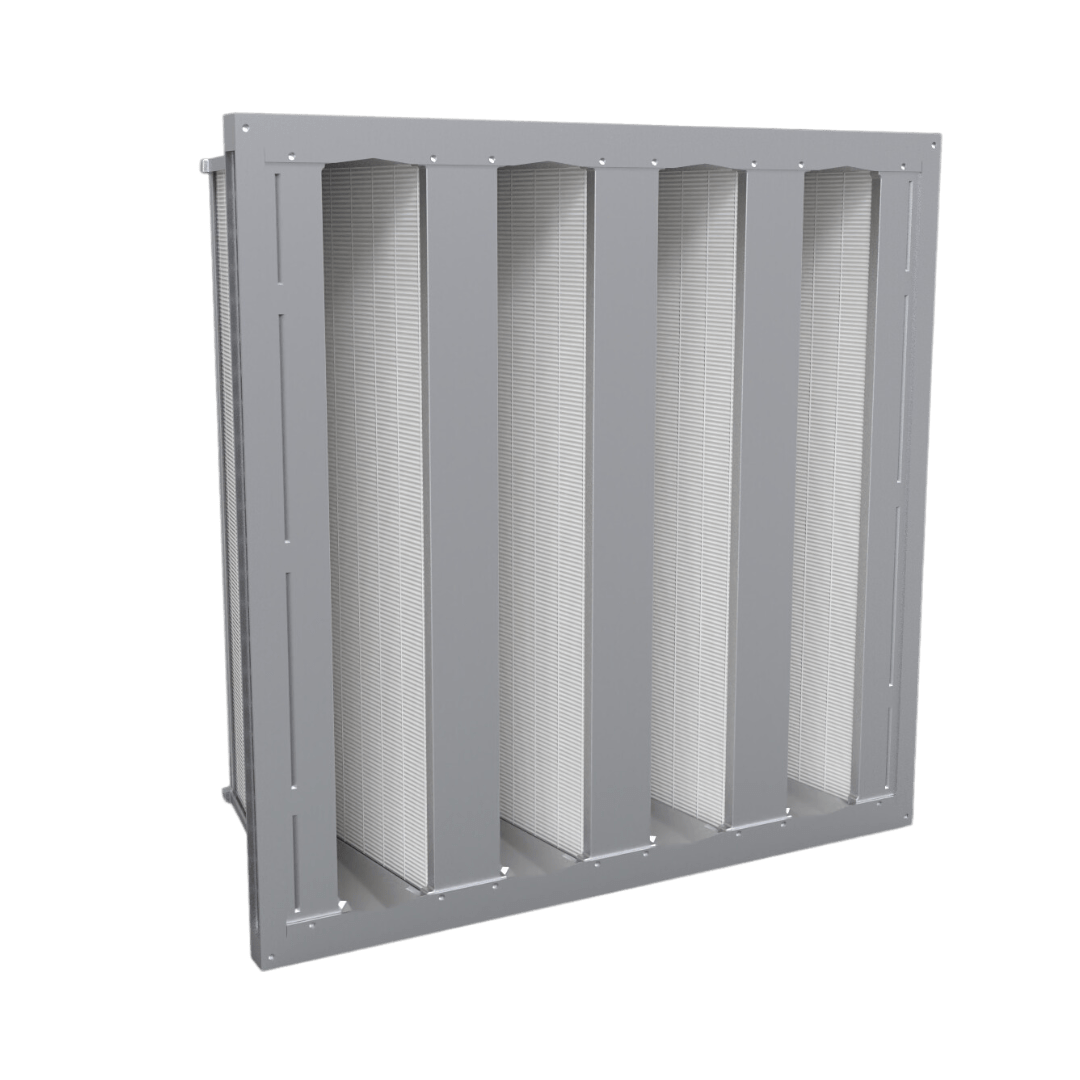

Mikropor MV Series V-Cell Filter
The Mikropor MV Series filter is a high-efficiency, energy-saving filter with a compact design. Its high surface area ensures superior performance, making it an ideal choice for most HVAC applications and cleanrooms. Designed for enhanced air purification, it effectively removes airborne contaminants such as smoke, pollen, and fine particulates, ensuring high indoor air quality.
Efficiency
The Mikropor 2V is available in MERV 11, MERV 13, MERV 14, and MERV 15 efficiencies.
Dust Holding Capacity
The dust holding capacity of the Mikropor MV at 500 fpm:
529g for MERV 11
450g for MERV 13
469g for MERV 14
407g for MERV 15
Depth
The Mikropor MV is available in a 12″ depth.
Initial Resistance
The initial resistance of the Mikropor MV at 500 fpm:
0.26 in.w.g. for MERV 11
0.29 in.w.g. for MERV 13
0.33 in.w.g. for MERV 14
0.36 in.w.g. for MERV 15
Final Resistance
The recommended final resistance of the Mikropor MV is 1.5 in.w.g.
Key Features & Benefits
- Advanced Microglass Fiber Media: Delivers high filtration efficiency
- Compact Design: Optimizes airflow and space usage, suitable for diverse installations.
- High Surface Area: Ensures longer filter life and improved filtration performance.
- Energy Saver: Reduces operating costs by maintaining a lower pressure drop.
- Robust Construction: Durable PS frame with optional gasket and polyurethane sealant enhances reliability and prevents air bypass.
