8000 Excell Heavy Duty Industrial Panel Filter
8000 Excell panel filters deliver exceptional performance in industrial ventilation systems, specifically engineered for environments with extreme dust-loading conditions.
Ideal applications include compressor intakes, blower intakes, mining operations, turbine intakes, and protection for critical process equipment.
Dust Holding Capacity
The fibers on the air-entering side of the media pad are interlaced with an open pattern that becomes increasingly tighter toward the air-leaving side. This unique construction allows the filter to hold more dirt throughout its entire depth with an average arrestance of 90%.
Depth
The 8000 Excell filter is available in 2” and 4” depths.
Initial Resistance
The initial resistance of the 8000 Excell media is:
0.41 in.w.g. for the 2”
0.38 in.w.g. for the 4”
Final Resistance
The final resistance of the 8000 Excell media is 1.0 in. w.g. for both 2” and 4” depths.
Key Features & Benefits
- Engineered for Severe Environments: Robust construction specifically designed to handle heavy dust loading and challenging industrial conditions.
- Superior Durability: Span-stitched pocket assembly with double-stitched and taped edges ensures exceptional strength and longevity.
- Enhanced Media Surface Area: Contains more glass fibre per square foot than standard filters.
- Progressive Density Media: Unique fiber compression design promotes dirt loading through the full depth of the filter, maximizing dust-holding capacity and extending service intervals.
- Improved Arrestance Efficiency: Increased density compression improves arrestance capabilities, capturing more particulates..
- Industrial-Grade Adhesive: Specialized adhesive formulation securely traps accumulated dirt, preventing particle migration and maintaining consistent filter performance.
- High Compression Strength: Thermoset resin-reinforced construction provides structural integrity under demanding operating pressures.
Case Study
Insights from our Clean Air Experts.
Explore real-world success stories and insights from our clean air experts. Our case studies highlight how tailored air quality solutions have improved environments, optimized system performance, and delivered measurable results.
Proudly Canadian
BGE is proudly Canadian-owned, operated, and dedicated to manufacturing high-quality air filtration products at our Edmonton facility, tailored specifically to meet the needs of Canadian industries. With over 50 years serving Western Canadian businesses, we remain committed to enhancing indoor air quality, sustainability, and supporting local economies.
Related Products
MERV
7
Viledon Downdraft Media

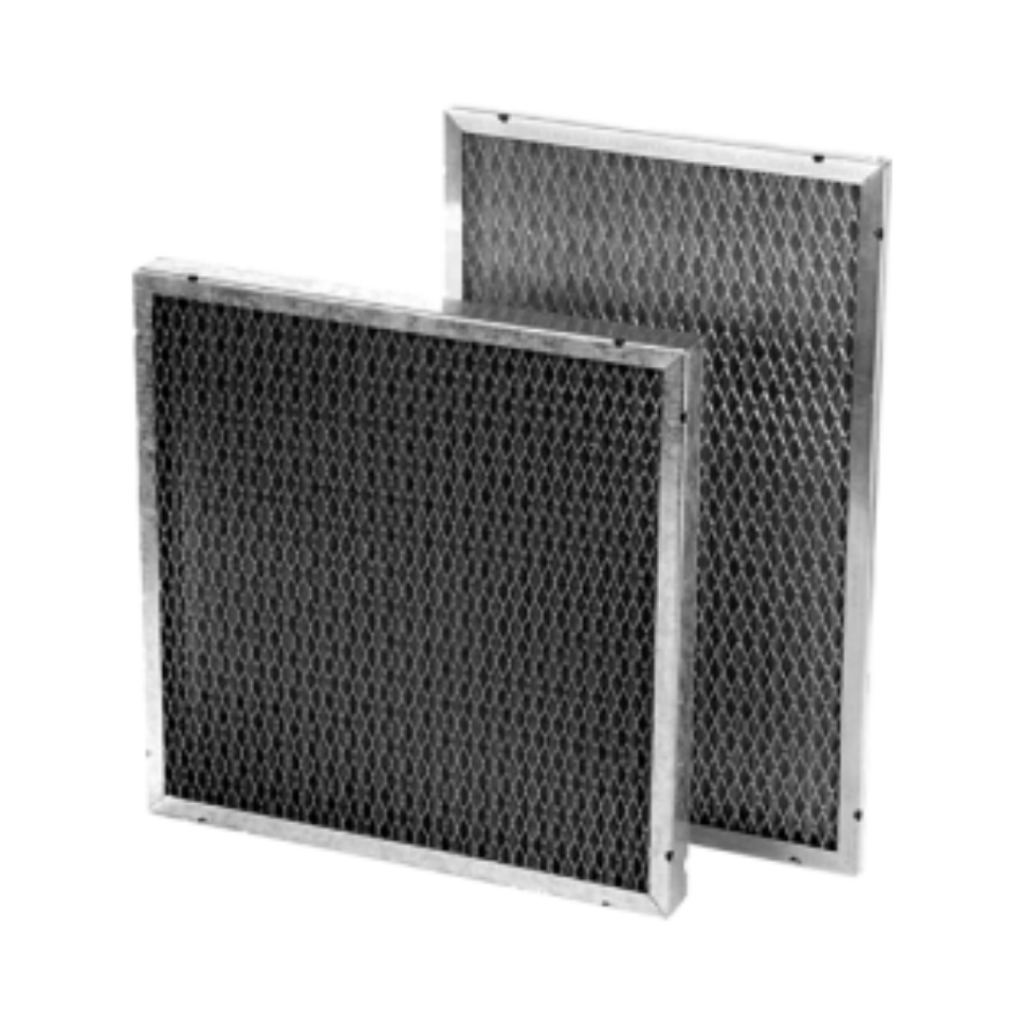

Aluminum Washable Air Filters
MERV
11

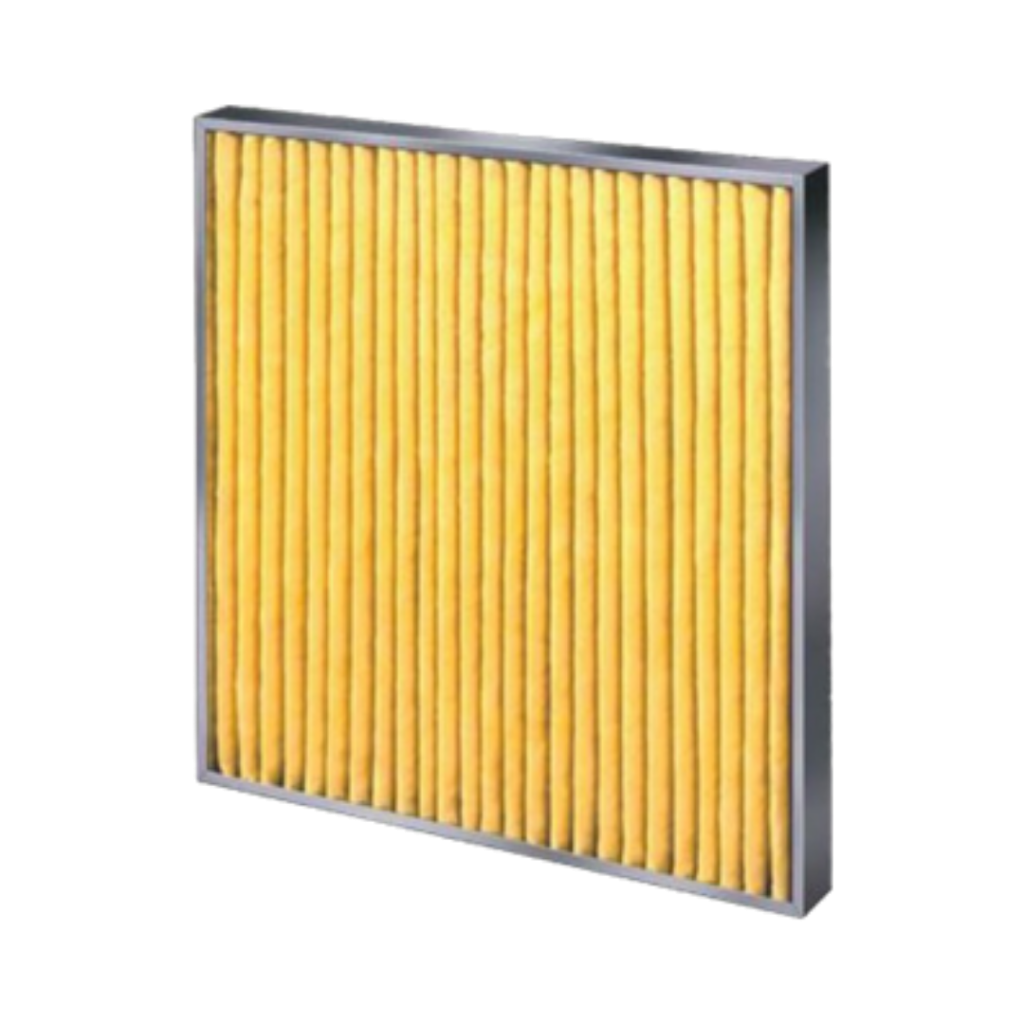

TP8000HT High Temperature Panel Filter
MERV
8

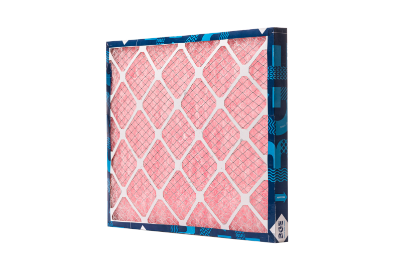

Red Excell Panel Filter
MERV
7

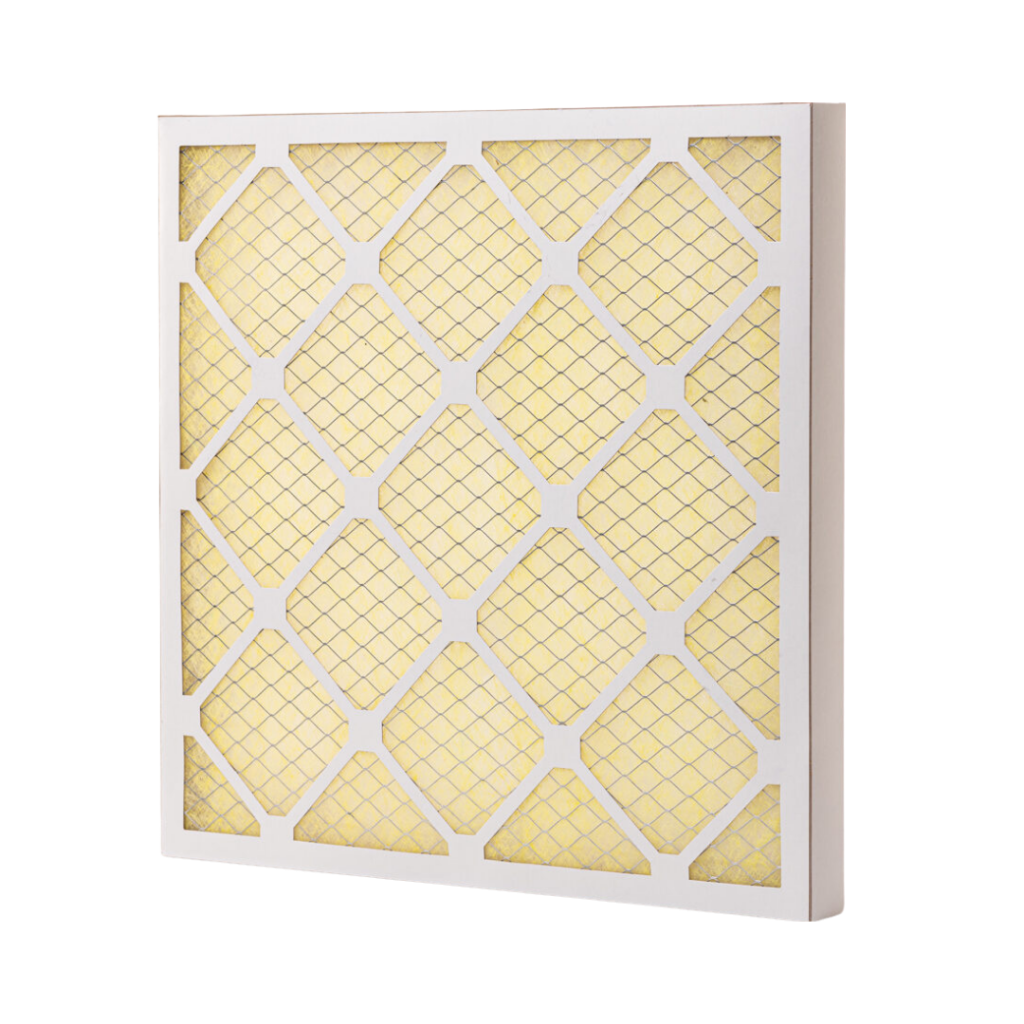

Gold Excell Panel Filter
