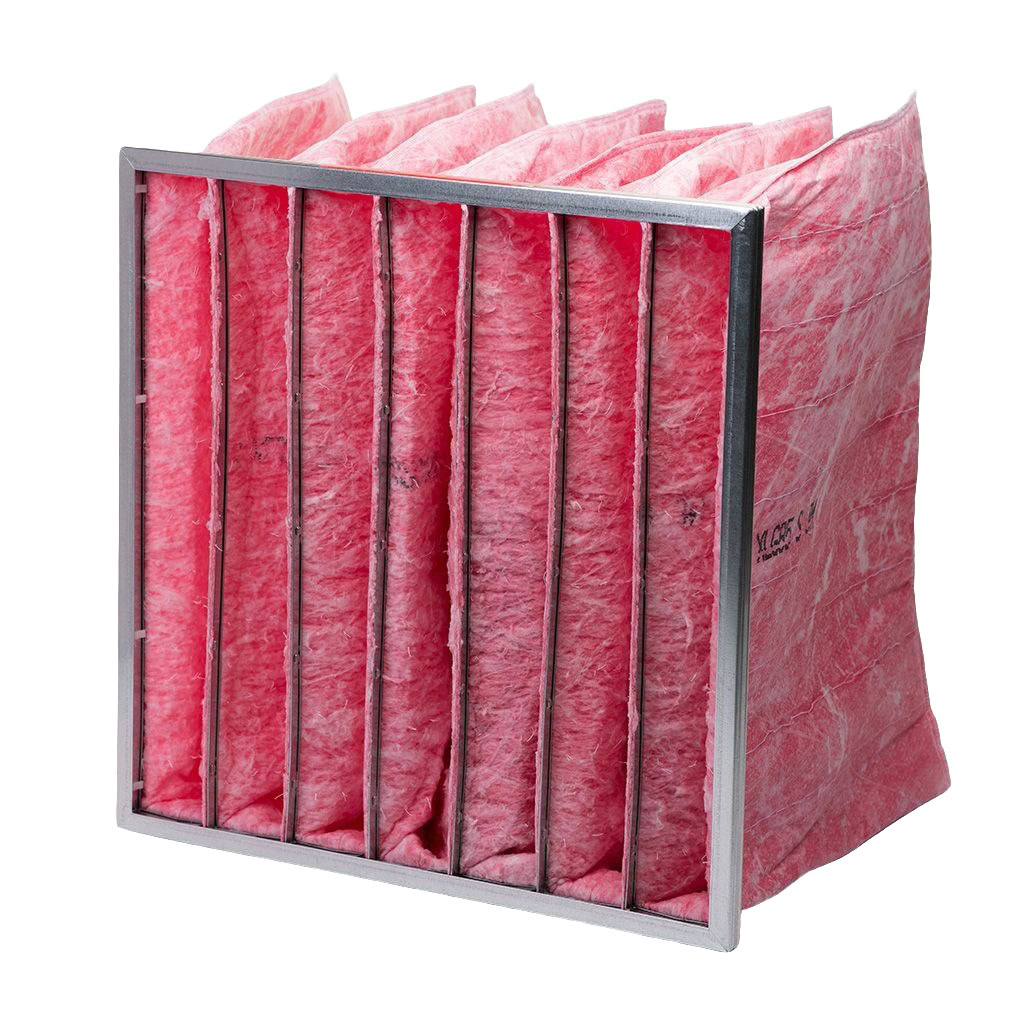

Fiberglass Tech Bag
The BGE Fiberglass Tech Bag Filter is built for high performance in demanding environments. This extended-surface pocket filter delivers excellent particulate removal efficiency and consistent filtration throughout its service life. Proudly manufactured in Western Canada, it’s available in a wide range of sizes, pocket configurations, and depths to meet the highest standards of indoor air cleanliness.
BGE’s Tech Bag features a durable, leak-free pocket design that prevents collected particulate from escaping. Each filter is constructed with span stitching sealed by a thermoplastic coating to secure the threads and close needle holes. The advanced pocket configuration ensures full pocket inflation and eliminates crowding, maintaining optimal airflow and efficiency.
Efficiency
The Fiberglass Tech Bag filters comes in a variety of MERV efficiencies 11 (TP65G), 13 (TB85G) and 14 (TB95G) rated at 492 fpm.
Dust Holding Capacity
Fiberglass Tech Bags are specifically designed to provide a high level of particulate removal where clean air is required.
Depth
Available with pocket depths ranging from 21” to 36”.
Initial Resistance
BGE’s Fiberglass Tech Bag initial resistance at 492 fpm ranges from:
0.31 to 0.39 in.w.g. for MERV 11
0.32 to 0.57 in.w.g. for MERV 13
0.40 to 0.70 in.w.g. for MERV 14
Refer to the PDF for the full list of specifications.
Final Resistance
The recommended final resistance is 1.00 in.w.g. for all configurations.

Key Features & Benefits
-
Available Efficiencies: MERV 11, 13, and 14
-
Durable Leak-Free Design: Span stitching and thermoplastic sealant prevent particle bypass and ensure leak-free operation.
-
Optimized Pocket Configuration: Unique pocket design promotes full inflation, eliminating crowding and maximizing airflow.
-
High-Performance Media: Micro-fine fiberglass fibers protected by a thin layer of scrim provides high efficiency and low resistance.
-
Flexible Options: Offered in a wide range of sizes, pocket configurations, and depths.
-
Gasket and Loop Options: Available with pre-installed gaskets for either front or side access systems. Pocket support loops are available.
